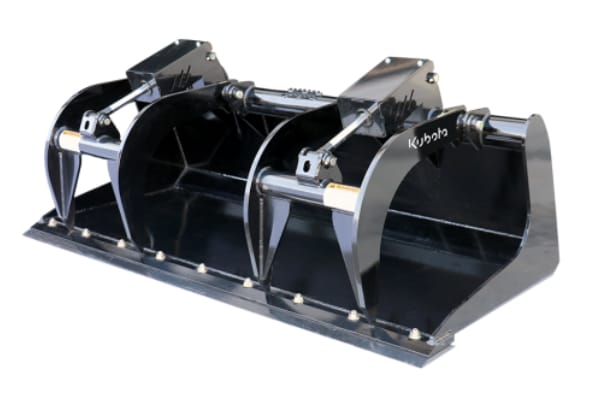

Skid steer grapple bucket

• Weight (wo shields and optional cutting edge) ………………………………… 1007 lbs
• Width ………………………………………………………………………………………………… 75″
• Closed Height …………………………………………………………………………………….. 33″
• Grapple Jaw Opening …………………………………………………………………….. 40 1/2″
• Hitch Type ……………………………………………………………… Universal Quick Attach
• Hose Couplers
  • 1) – 1 1/16″ FORB male
  • (1) – 1 1/16″ FORB female flat faced couplers
• Bucket Floor Thickness …………………………………………………………………….. 1/4″
• Bucket Side Wall Thickness ………………………………………………………………. 1/2″
• Bucket Cutting Edge Thickness …………………………………………………………. 3/4″
• Working Depth of Bucket ………………………………………………………………  37 1/2″
• Number of Upper Grapple Jaws ……………………………………………………………  2
• Upper Grapple Tooth Thickness ………………………………………………………….. 3/4″
• Upper Grapple Jaw Pivot Pins ……………………………. Greasable 1 1/4″ pivot pins
• Hydraulic Cylinders ……………………………………………. (2) 2 1/2″ x 8″ x 1 1/4″ Rod
• Hydraulic Cylinder Pivot Pins ………………………………….. Greasable 1″ Pivot Pins
• Maximum Hydraulic Pressure Rating …………………………………………….. 3500 psi
• Optional Bolt-on Cutting Edge ………………………….. Reversable and Replaceable
• Optional Hose Shields ………… 1/4″ Welded Housing with 1/4″ Removable Cover
• Optional Cylinder Shields ……………………………………….. 5/16″ Formed Channels

Skid steer grapple bucket w/ solid bottom
