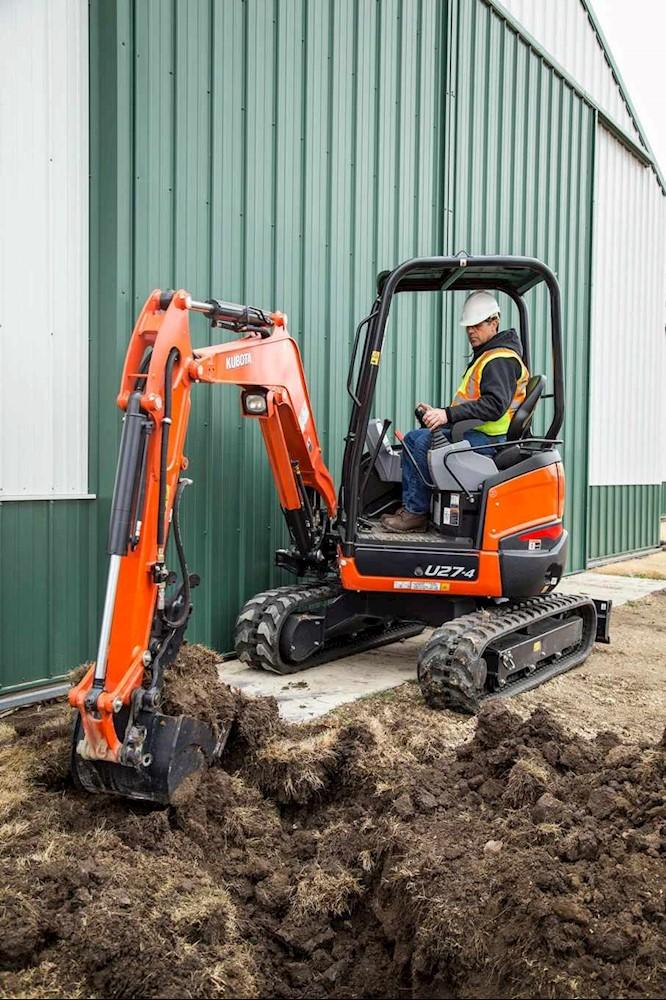

3 metric ton mini excavator

Engine

• Horsepower (*SAE J 1995 Gross) ….. 20.8 / 2400* HP / rpm
• Displacement …………………………. 68.5 cu. in.
• Emissions Tier Level (EPA) ……….. Tier 4 Final

Dimension

• Overall length ………………………. 163.3 in.
• Overall height ……………………… 95.3 in.
• Overall width ……………………….. 59.1 in.
• Tail swing type ………………….….. Mini
• Tail swing overhang ……………….. 1.6” in.
• Min. ground clearance …………… 12 in.

Working Range Long Stick

• Max. digging height ……………….. 174.0 in.
• Max. dumping height ………………120.0 in.
• Max. digging radius @ ground……. 184 in.
• Max. digging depth …………………113.0 in.
• Max. vertical digging depth ……….. 92 in.

Hydraulic System

• Pump capacity ……………………… 20.3 GPM
• Number of hydraulic pumps …..…. 3
• Auxiliary hydraulic flow rate …….. 12 GPM
• Auxiliary relief ……………………. 249 psi
• Maximum arm crowd force .……. 277 lbf
• Max. bucket digging force …..…. 701 dbf

Drive System

• Traveling speed ……………….. 1.6 / 2.7 mph
• Max.traction force …………….. 6767 dbf
• Under carriage shoe width …… 1 in
• Ground contact pressure …….. 3.5 psi

Swing System

• Unit swing speed ……………… 9.9 rpm
• Boom swing angle ( L / R ) …… 75 / 55 degree

Blade

• Blade width x height ………….. 59.1 X 11.8 in
• Max. lift above ground ………. 14.2 in
• Max. drop below ground ……. 12.6 in

Capacities

• Fuel reservoir ………………….. 8.7 gal
• Hydraulic reservoir / system ….. 5.8 / 9.7 gal

Operating Weight

• Rubber tracks, canopy ………… 5,688 lbs

3 metric ton mini excavator
