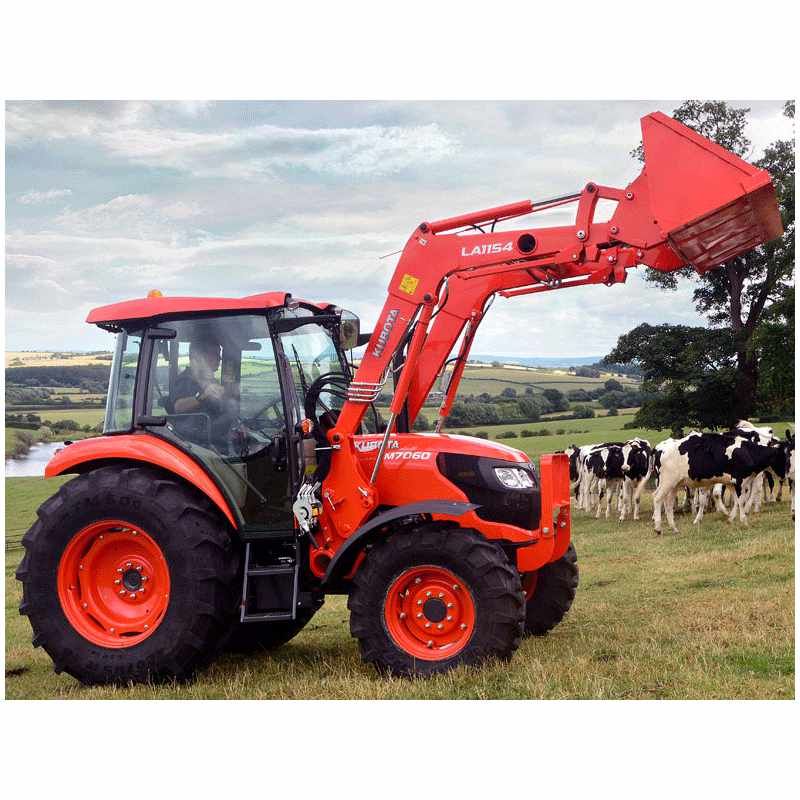

60-79 HP tractor w/ enclosed cab

• Engine ……………………………………………………………………….………. V3307-CR-TE4
• Type (Make : KUBOTA) ……… 4 cylinder in-line, Common Rail System, direct Inject.
• No. of cylinders /Aspiration ……………………………………..…………… 4 / turbocharged
• Engine net power* ……………………………………………….…………71 (53.0) HP (kW)
• PTO power …………………………………………………………….………. 64 (47.7) HP (kW)
• Total displacement ………………………………………………….. 203 (3331) cu. In. (Cc)
• Rated engine RPM ROPS/CAB ……………………………………………………..…… 2400
• Fuel tank capacity ROPS/CAB …………………….………. 18.5 (70) / 23.8 (90) gal (l)
• Alternator ROPS/CAB ………………..…………. 45 Amp / 60 Amp (100 Amp : OPT)

Transmission

• Main gear shift …………………………………………….…………………. Fully synchronized
• Shuttle shift …………………………………………………………..…………. Hydraulic-shuttle
• Main clutch type ……………………………………………….……………… Multiple wet disc
• Brake type ……………….………………….. Mechanical wet disc / Hydraulic wet disc

Differential lock

• Front ……………………………………………………………………… Limited Slip Differential
• Rear ………………………………………………………………………………………. Mechanical
• 4WD clutch type ……………….. Mechanical on-the-go / Electro-Hydraulic on-the-go

PTO

• Type …………………….. Live-independent PTO, electro-hydraulic clutch with brake
• Speed ……………………………………………………………..……………… 540 / 540E rpm

Hydraulic

• Pump capacity (3-Point Hitch) ROPS/CAB ………………..….. 11.0 (41.6) gpm (I/min)
• 3-Point Hitch ……………………… Telescopic lower link ends, Telescopic Stabilizers
• Category ………………………………………………………………………………………… I / II
• Control system ……………………. Position, draft (top link sensing) & mixed control
• Lift capacity at 24 in. behind lift point lbs. (kg) …………………………….….. 3307 (1500)
• Cylinder type ………………………………………………………….. Two external cylinders
• No. of standard remote valves …………….. 1 (2nd, 3rd & flow control valve optional)

Other Features

• 4WD system ………………………………………………………………………. Bevel gear type
• Steering ………………………………………………………………. Hydrostatic power steering
• Tilt steering ………………………………………………………………………..……….. Standard
• Hood type / Pedal type …………………………….…. Full open, slanted, steel / Hanging
• Deck type (ISO-mounted w/rubber mat)
  • Semi-flat on ROPS models, full-flat on CAB models
• Panel type ………………………………………………………………………..………. Electronic
• Fender shape ………………………………………………………..……………… Wide, round

Standard tire size

• Front ……………………………………………………………………..……………….. 9.5-24
• Rear ……………………………………………………………………..……………….. 16.9-30

Dimensions & weight

• Overall length ROPS models …………………………………..……. 138.0 (3505) in. (mm)
• Overall length CAB models ……………………………………..…… 138.0 (3505) in. (mm)
• Overall height top of ROPS …………………………………….………. 97.2 (2470) in (mm)
• Overall height top of CAB ……………………………………………. 101.0 (2565) in (mm)
• Overall width (minimum) ………………………………………………… 73.0 (1860) in (mm)

Wheelbase

• ROPS models ………………………………………………….………… 83.1 (2110) in (mm)
• CAB models ……………………………………………………………….. 83.1 (2110) in (mm)
• Crop clearance (Front axle) …………………………………….………. 18.1 (460) in (mm)

Tread width

• Front ………………………………………………………. 55.9, 59.8 (1420, 1520) in (mm)
• Rear …………………………………………………….….. 55.9-67.7 (1420-1720) in (mm)
• Turning radius (w/o brake) ………………………………………….………. 11.8 (3.6) ft. (m)

Tractor weight

• ROPS models ………………………………………………………..…. 5027 (2280) lbs. (kg)
• CAB models ………………………………………………………….…… 5380 (2440) lbs. (kg)
