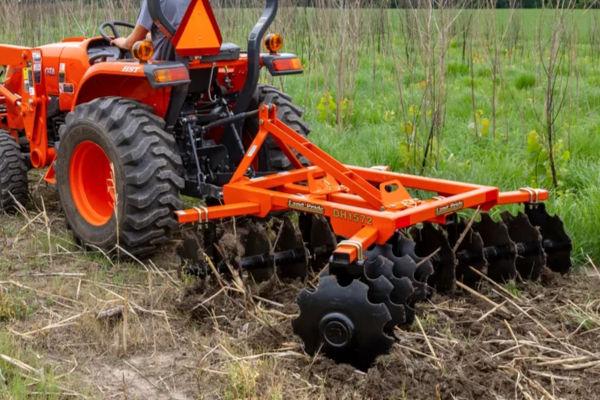

6.5′ disc

• 3-Point hitch type …………….… Cat. I (Fits Land Pride Quick Hitch)
• Horsepower Rating ………….… Max 40 horsepower (29.8 kw)
• Cultivation width …………….… 48″ (1.22 m)
• Height ……………………….….. 34 3/4” (88.3 cm)
• Disc blade sizes ………………. 16” (40.6 cm)
• Length with largest dia. disc blades …….. 50” (1.27m)
• Weight ……………………..….… 421 lbs (191.0 kg)
• Weight load per disc …………… 35 lbs (15.9 kg)
• No. of disc blades …………….. 12
• Disc blade types ………..…….. Notched or smooth
• Disc blade spacing …………….. 7 1/2″ (19.1 cm)
• Bearing hanger …………..…… 3/8″ (10 mm) Plate with 5/8″ (16 mm) u-bolt
• Bearing type, 2 per gang …………………… Self aligning , Sealed, grazable, ball bearing
• Disc angle …………………..… Front & rear gang: 0, 7, 14, & 21 degrees
• Frame tubes ………………………… 2″ (5.1 cm) square
• Gang tube ……………………….. 3″ x 1 1/2″ (7.6 cm x 3.8 cm)
• Gang axle …………………….. 1″ (2.5 cm) Square high carbon steel

6.5′ disc
