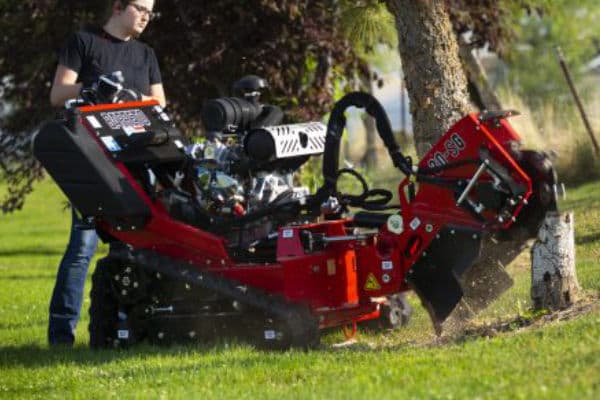

Self-propelled stump grinder

Engine

• Briggs & Stratton Vanguard V-Twin 31hp

Details

• Height: …………………………………….. 49.5”
• Length (head to side) ……………………. 79”
• Length (head straight) …………………… 98”
• Width ……………………………………… 35.5”
• Weight ……………………………….…… 1,700 lbs
• Hydraulic Reservoir ……………….……. 14 gal
• Track Width ……………………………….. 7.1”
• Total Ground Contact …………………… 470 sq. In.
• Ground Drive Forward ………………….. 290 ft/min
• Ground Drive Reverse ………………….. 180 ft/ min

Wheel Specifications

• Cutting Wheel ……………………………. 19.2” diameter to tooth
• Cutting Teeth ……………………..………. 0.750 thick, 16 green teeth
• Cutting Depth ……………………..……… 12”
• Cutting Height …………………………….. 32”
• Head Swing ………………………………. 134” , 99.7” arcs

31 hp walk behind side sweep stump grinder
