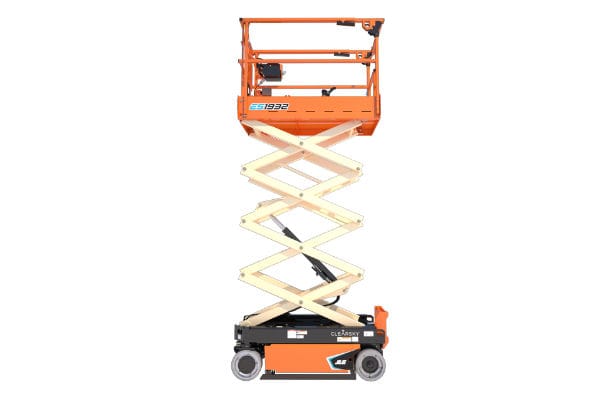

Electric scissor lift

Performance

• Platform Height (Elevated)
  • Indoor ……………………………………………………………………………… 19-ft / 5.8-m
  • Outdoor …………………………………………………………………………….19-ft / 5.8-m
• Platform Capacity
  • Indoor …………………………………………………………………………. 507-lb / 230-kg
  • Outdoor ………………………………………………………………………. 507-lb / 230-kg
• Capacity on Platform Extension
  • Indoor ………………………………………………………………………… 265-lb / 120-kg
  • Outdoor ……………………………………………………………………… 265-lb / 120-kg
• Number of Occupants
  • Indoor …………………………………………………………………………………………… 2
  • Outdoor ………………………………………………………………………………………… 1
• Lift / Lower Time (No Load)
  • Indoor ……………………………………………………………………….. 20/27 seconds
  • Outdoor …………………………………………………………………….. 20/27 seconds
• Lift / Lower Time (Rated Load)
  • Indoor ………………………………………………………………………. 25/26 seconds
  • Outdoor ……………………………………………………………………. 25/26 seconds
• Maximum Drive Height
  • Indoor ………………………………………………………………………. Fully Elevated
  • Outdoor ……………………………………………………………………. Fully Elevated
• Weight
  • Indoor ……………………………………………………………….. 3,450-lb / 1,564-kg
  • Outdoor …………………………………………………………….. 3,450-lb / 1,564-kg
• Max. Ground Bearing Pressure
  • Indoor ………………………………………………………………. 114 psi / 8.0 kg/cm²
  • Outdoor ……………………………………………………………. 114 psi / 8.0 kg/cm²
• Drive Speed(Lowered)
  • Indoor ……………………………………………………………….. 2.1 mph / 3.4 km/h
  • Outdoor …………………………………………………………….. 2.1 mph / 3.4 km/h
• Drive Speed (Raised)
  • Indoor ……………………………………………………………….. 0.5 mph / 0.8 km/h
  • Outdoor …………………………………………………………….. 0.5 mph / 0.8 km/h
• Gradeability
  • Indoor …………………………………………………………………………………… 25%
  • Outdoor ………………………………………………………………………………… 25%
• Max Tilt Rating (Side-to-Side)
  • Indoor …………………………………………………………………….. 1.75 Degrees
  • Outdoor ………………………………………………………………….. 1.50 Degrees
• Max Tilt Rating (Fore and Aft)
  • Indoor ……………………………………………………………………. 3.75 Degrees
  • Outdoor …………………………………………………………………. 3.75 Degrees
• Turning Radius (Inside)
  • Indoor ……………………………………………………………………………….. Zero
  • Outdoor …………………………………………………………………………….. Zero
• Turning Radius (Outside)
  • Indoor ………………………………………………………………….. 66-in / 1.68-m
  • Outdoor ……………………………………………………………….. 66-in / 1.68-m

Power

• Batteries ………………………………………………………………. 4 x 6V 220 amp-hr
• Charger ……………………………………………………………………………….. 27 Amp
• Drive ………………………………………………………………. Hydraulic Front Wheel

Tires

• Standard ……………………………………………………. 12.7 x 4-in / 323 x 100-mm
• Brakes ……………………………………………………………………. Multi-Disc Friction

Hydraulic System

• Capacity ……………………………………………………………………………. 4 gal / 15 L
• Pump ……………………………………………………………. Fixed Displacement Gear

19′ electric scissor lift
