65 hp open cab skid steer

Engine

• Model ……………………………………………………………………. V2607-CR-TE4
• Output (SAE J1995 gross) …………………………………………… 68.3 (51.0) HP (kW) / 2600 rpm
• Output (SAE J1349 net) ……………………………………………… 60 (44.7) HP (kW) / 2600 rpm
• Displacement …………………………………………………………… 159.6 CU. in.
• Cylinders ………………………………………………………………….. 4
• Bore x Stroke …………………………………………………………….. 3.4 in x 4.3 in
• Aspiration ……………………………………………………………….. Turbocharged

Loader Performance

• Rated Operating Capacity – 35% tipping load …………………. 2100 lbs
• Tipping Load …………………………………………………………… 6000 lbs
• Breakout Force
  • Bucket …………………………………………………………. 4614 lbf.
  • Lift Arm ………………………………………………………… 4266 lbf.
• Lift Arm Path ……………………………………………………………. Vertical

Undercarriage

• Track Width
  • Standard ………………………………………………………. 12.6 in
  • Wide …………………………………………………………….. 15 in
• Ground Pressure
• Track Rollers (per side) ……………………………………………. 4
• Track Ground Contact Length …………………………………… 57.9 in
• Travel Speed
  • Low ………………………………………………………….. 4.9 mph
  • High …………………………………………………………. 7.0 mph
• Traction Force …………………………………………………….. 8406 lbf.
• • Standard …………………………………………………….. 5.0 psi
  • Wide ………………………………………………………….. 4.2 psi
• Min. Ground Clearance …………………………………………. 9.1 in

Hydraulic System

• Aux. Hydraulic Flow ……………………………………………. 17.4 gpm
• Aux Hydraulic Pressure ………………………………………. 3263 psi

Service Refill Capacities

• Hydraulic System …………………………………………………. 13.2 gal
• Hydraulic Tank ……………………………………………………… 5.4 gal
• Fuel Tank …………………………………………………………….. 21.7 gal

Operating Weight (includes operator weight 165 lbs) ………………………. 8035 lbs

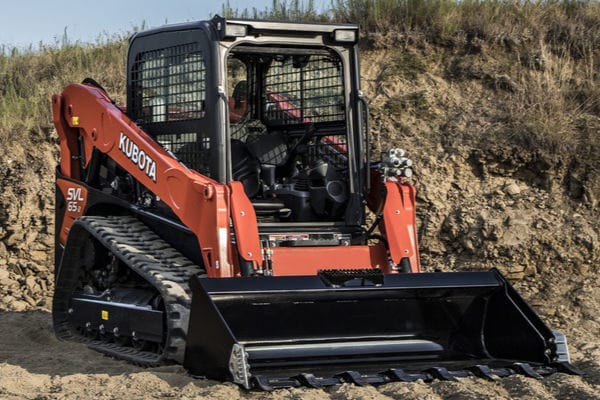

65 hp open cab skid steer w/ joystick controls
