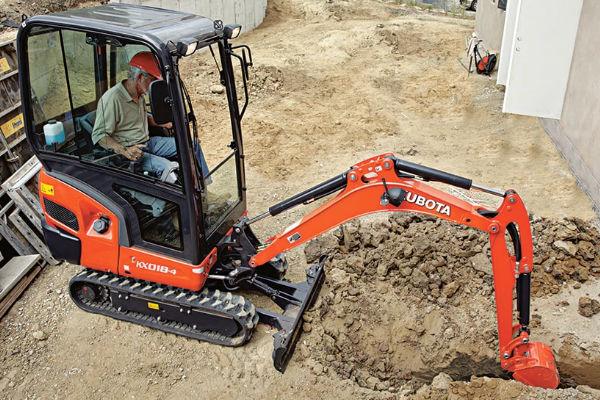

2 metric ton mini excavator

Engine

• Model …………………………………………………….. Kubota D902-BH-E4
• Output (SAE J1995 gross) HP (kW)/rpm …… 16.1 (12.0) / 2300
• Output (SAE J1349 net) HP (kW)/rpm ……… 15.5 (11.6) / 2300
• Displacement cu. in. (cc) …………………….. 54.80 (898)

Dimensions

• Overall length ft. in. (mm) …………………… 12’2.1″ (3710)
• Overall height ft. in. (mm)…………………….. 7’7.7″ (2330) / 7’8.5″ (2350)
• Overall width ft. in. (mm)……………………… 4’3.2″ (1300) / 3’3.0″ (990)
• Min. ground clearance in. (mm)……………… 6.3″ (160)

Hydraulic system

• Pump capacity GPM ( /min)…………. 4.6 (17.3) × 2 / 2.8 (10.4) × 1 / 1.7 (6.2) × 1
• Auxiliary hydraulic flow GPM ( /min)…………… 7.4 (27.7)
• Max. breakout force. Bucket / Arm lbs. (kgf)….. 3594 (1630) / 1852 (840)

Drive system

• Travel speed Low / High mph (km/h)………….. 1.4 (2.2) / 2.5 (4.0)
• Max. traction force lbs. (kgf)……………………. 4542 (2060)
• Tumbler distance ft. in. (mm)……………………. 4’1″ (1230)
• Crawler length ft. in. (mm)……………………….. 5’2.6″ (1590)
• Shoe width in. (mm)………………………………. 9.1″ (230)
• Ground contact pressure psi (kgf/cm2)………… 3.7 (0.26) / 3.8 (0.27)

Swing system

• Unit swing speed ………………………………….. 9.1mph
• Boom swing angle (Left / Right)………………….. 75 / 60 degree

Blade

• Width ft. in. (mm) ………………….………..……. 4’3.2″ (1300) / 3’3.0″ (990)
• Height in. (mm)……………………………………… 9.1″ (230)
• Max. lift above ground in. (mm)…………………… 9.1″ (230)
• Max. drop below ground in. (mm)………………… 9.1″ (230)
• Hydraulic oil (reservoir / system)………………….. 4.1 (15.5) / 7.4 (28) gal
• Fuel reservoir………………………………………..  5.6 (21) gal

Operating weight (Including operator’s weight 175 lbs.) lbs. (kgf)
3748 (1700) / 3968 (1800)
